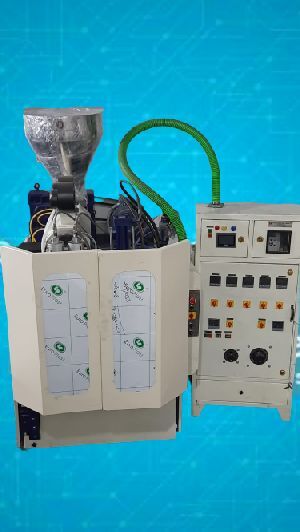

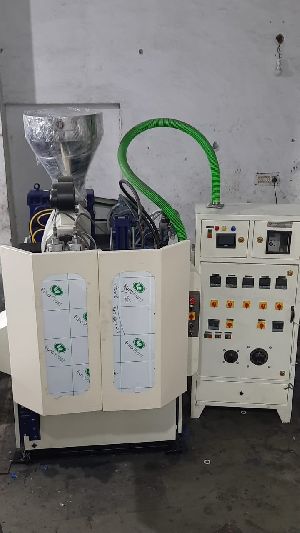

250ml Automatic Blow Moulding Machine

250ml Automatic Blow Moulding Machine

Specifications

Brand Name Faith engineering works
Condition Brand new
Warranty 1 year
Blow Moulding Type Semi automatic/fully automatic
Plastic Processed HDPE, LDPE, PPE etc.
colour white-Blue

Additional Information

Product Code FEW-250P/H

As a quality driven firm, we have been engrossed in manufacturing, exporting & supplying of 250ml Automatic Blow Moulding Machine (Model No : FEW-250P/H) from Delhi, India. The offered product is made from the high grade basic material that is checked on several parameters prior to procurement. Our advanced production unit enables us to serve 250ml Automatic Blow Moulding Machine in different specifications, defined by the patrons. This is one of the superior quality FEW250H(P) Blow Moulding Machine in the indusry. As a prominent Manufacture, Exporter and Supplier of the Blowing Moulding Machine, we ensure to provide machines with best technical specification. Not just this, Blow Moulding Machine provided by us is also available market competitive prices.



Choice of :

  • Auto Sealing
  • PVC Suitability
  • Single or Double Station
  • Microprocessor Controls
  • Double/triple Head
  • viewing strip machine
  • Blower
  • Auto Deflashing
  • Parison Control De3vice
  • Multy point parison Control
  • Extruders with bigger Screws
  • Hot wire cutter
  • Bottom blow Attachment

Yes! I am interested

Submit Your Requirement


Specifications

Screw Diameter 35 mm
Plasticizing Capacity 8 to 10 Kg/hr
Maximum Opening 250 mm
Minimum Opening 150 mm
Ratio 21 L/D
Blowing Capacity 50 to 500 ml
Mould Thickness 125 mm
Mould Length 215 mm
Mould Width 130 mm
Dry Cycles/ min 20 Nos
Max Container Dia 70 mm
Air Requirements 9 CFM

Details

Electric
Extruder Motor 3.7/5 kw/hp
Hydrautlic Motor 2.2/3 kw/hp
Oil Tank Capacity 90 Ltr.
Heating Zone 5 Nos
Heating Load 5 kw
Blower .18/.25kw/hp
Blower 1 Nos
Total Power of M/c 11 Kw

Dimension of Machine & Weight
Machine Weight 800 kg
Machne Dimension LxWxH 55"x37"x68"
Panel Weight 125 kg
Panel Dimensin LxWxH 55"x26"x15"
