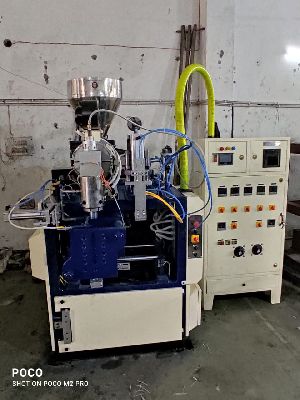

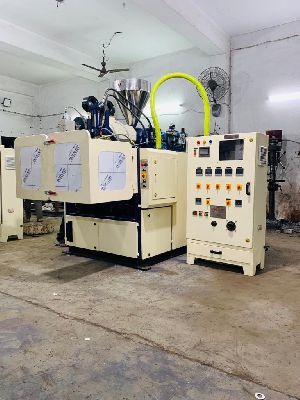

500ml Automatic De-Flashing Blow Moulding Machine

11 Lac / Piece

1 Piece(s) (MOQ)

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler
Brand Name Faith Engineering Works
Color white-Blue
Condition Brand New
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Warranty
1 Year
Product Code
FEW-500H

High productivity, easy operation and great efficiency make our 500ml Automatic Blow Moulding Machine (Model No : FEW-500H) high in demand among the global buyers. The offered Moulding Machines are assembled by utilizing a rust proof components, thus long lifespan is assured. We are Manufacturer, Exporter as well as Supplier of Moulding Machine and known for our fair price policies.This is one of the superior quality FEW500H Blow Moulding Machine in the indusry. As a prominent Manufacture, Exporter and Supplier of the Blowing Moulding Machine, we ensure to provide machines with best technical specification. Not just this, Blow Moulding Machine provided by us is also available market competitive prices.



Choice of :

  • Auto Sealing
  • PVC Suitability
  • Single or Double Station
  • Microprocessor Controls
  • Double/triple Head
  • viewing strip machine
  • Blower
  • Auto Deflashing
  • Parison Control De3vice
  • Multy point parison Control
  • Extruders with bigger Screws
  • Hot wire cutter
  • Bottom blow Attachment

Yes! I am interested


Specifications

Screw Diameter 40 mm
Plasticizing Capacity 12 to 15 Kg/hr
Maximum Opening 150 mm
Minimum Opening 100 mm
Ratio 21 L/D
Blowing Capacity 750 ml
Mould Thickness 175 mm
Mould Length 260 mm
Mould Width 170 mm
Dry Cycles/ min 15 Nos
Max Container Dia 80 mm
Air Requirements 10 CFM

Details

Electric
Extruder Motor 5.3/7.5 kw/hp
Hydrautlic Motor 3.7/5 kw/hp
Oil Tank Capacity 100 Ltr.
Heating Zone 5 Nos
Heating Load 5 kw
Blower .18/.25kw/hp
Blower 1 Nos
Total Power of M/c 14.5 Kw
Dimension of Machine & Weight
Machine Weight 800 kg
Machne Dimension LxWxH 72"x45"x75"
Panel Weight 125 kg
Panel Dimensin LxWxH 55"x27"x15"
