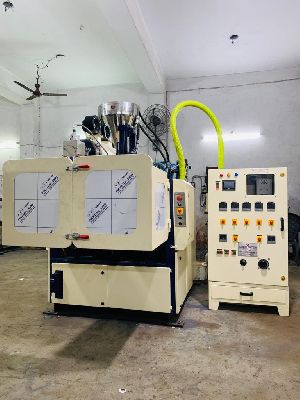

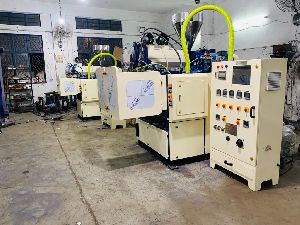

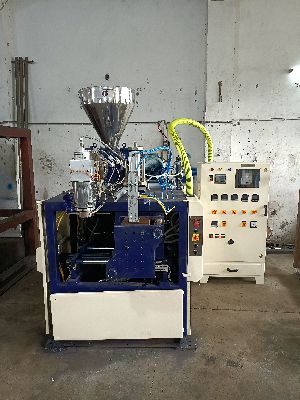

1 Liter Automatic Blow Moulding Machine

1 Liter Automatic Blow Moulding Machine
Business Type Manufacturer, Exporter, Supplier, Retailer
Model Number FEW-1000H
Brand Name Faith engineering works
Condition Brand new
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Warranty
1 year
Blow Moulding Type
Semi automatic/fully automatic
Plastic Processed
HDPE, LDPE, PPE etc.
colour
white-Blue
Product Code
FEW-1000H

Buyers can get in touch with us for obtaining a superior quality range of 1 Liter Automatic Blow Moulding Machine (Model No : FEW-1000H) that is widely applauded due to its relaible performance. Loaded with latest features, our Blow Moulding Machines are accessible in different specifications and priced so nominally so that buyers can easily afford them.This is one of the superior quality FEW1000H Blow Moulding Machine in the indusry. As a prominent Manufacture, Exporter and Supplier of the Blowing Moulding Machine, we ensure to provide machines with best technical specification. Not just this, Blow Moulding Machine provided by us is also available market competitive prices.



Choice of :

  • Auto Sealing
  • PVC Suitability
  • Single or Double Station
  • Microprocessor Controls
  • Double/triple Head
  • viewing strip machine
  • Blower
  • Auto Deflashing
  • Parison Control De3vice
  • Multy point parison Control
  • Extruders with bigger Screws
  • Hot wire cutter
  • Bottom blow Attachment
Read More...

Yes! I am interested


Specification

Screw Diameter 45 mm
Plasticizing Capacity 16 to 20 Kg/hr
Maximum Opening 200 mm
Minimum Opening 150 mm
Ratio 21 L/D
Blowing Capacity 500 ml to 2 ltr.
Mould Thickness 200 mm
Mould Length 350 mm
Mould Width 225 mm
Dry Cycles/ min 15 Nos
Max Container Dia 150 mm

Details

Electric
Extruder Motor 7.4/ 10 kw/hp
Hydrautlic Motor 3.7/5 kw/hp
Oil Tank Capacity 200 Ltr.
Heating Zone 5 Nos
Heating Load 6.5 kw
Blower .18/.25kw/hp
Blower 1 Nos
Total Power of M/c 18 Kw
Electric
Extruder Motor 7.4/ 10 kw/hp
Hydrautlic Motor 3.7/5 kw/hp
Oil Tank Capacity 200 Ltr.
Heating Zone 5 Nos
Heating Load 6.5 kw
Blower .18/.25kw/hp
Blower 1 Nos
Total Power of M/c 18 Kw
